Freight Elevator

It carries heavy load to the designated floor in safe service like factory, warehouse, shopping center, supermarket, airport and stations.



Shin Han Elevator Co., Ltd. provides with the standard range of 2000kg to 5000kg as well as mammoth capacity of 30000kg specialized in customizing.

CAR DESIGN

1. SHE-01
천정(Celling) STS HAIRLINE(LED LIGHT)
카벽(Car wall) STS HAIRLINE
카도어(Car door) STS HAIRLINE
바닥(Floor) CHECK PLATE

3 DOOR UP & DOWN OPEN TYPE

2. SHE-02
천정(Celling) STS HAIRLINE(LED LIGHT)
카벽(Car wall) STS HAIRLINE
카도어(Car door) STS HAIRLINE
바닥(Floor) CHECK PLATE

4 DOOR CENTER OPEN TYPE

OPTION

O.P.B | 조작반

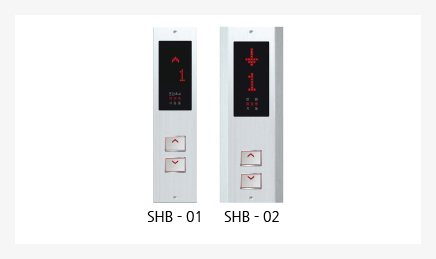

HALL BUTTON

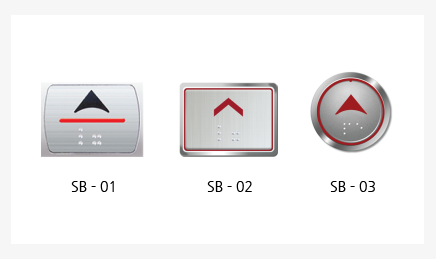

BUTTON

화물용 엘리베이터 로프식

중량
Rated Load
(kg)		 도어 형식
Door Type		 카 치수
Car dimension		 출입구
Opening		 승강로
(Hoistway)
A B CH W H X Y 최소층고
2000 2UP (일방) 2000 2800 2300 2000 2300 3100 3370 4300
2UP (관통) 2000 2800 2300 2000 2300 3100 3680 4300
3UP (일방) 2000 2800 2300 2000 2300 3100 3510 3917
3UP (관통) 2000 2800 2300 2000 2300 3100 3960 3917
2500 2UP (일방) 2400 3000 2300 2400 2300 3500 3570 4300
2UP (관통) 2400 3000 2300 2400 2300 3500 3880 4300
3UP (일방) 2400 3000 2300 2400 2300 3500 3710 3917
3UP (관통) 2400 3000 2300 2400 2300 3500 4160 3917
3000 2UP (일방) 2600 3400 2300 2600 2300 3700 3970 4300
2UP (관통) 2600 3400 2300 2600 2300 3700 4280 4300
3UP (일방) 2600 3400 2300 2600 2300 3700 4110 3917
3UP (관통) 2600 3400 2300 2600 2300 3700 4560 3917
3500 2UP (일방) 2800 3800 2300 2800 2300 3900 4370 4300
2UP (관통) 2800 3800 2300 2800 2300 3900 4680 4300
3UP (일방) 2800 3800 2300 2800 2300 3900 4510 3917
3UP (관통) 2800 3800 2300 2800 2300 3900 4960 3917
4000 2UP (일방) 3000 4000 2300 3000 2300 4100 4570 4300
2UP (관통) 3000 4000 2300 3000 2300 4100 4880 4300
3UP (일방) 3000 4000 2300 3000 2300 4100 4710 3917
3UP (관통) 3000 4000 2300 3000 2300 4100 5160 3917
5000 2UP (일방) 3200 4500 2300 3200 2300 4300 5070 4300
2UP (관통) 3200 4500 2300 3200 2300 4300 5380 4300
3UP (일방) 3200 4500 2300 3200 2300 4300 5210 3917
3UP (관통) 3200 4500 2300 3200 2300 4300 5660 3917
8000 2UP (일방) 3500 5000 2300 3500 2300 5050 5670 4300
2UP (관통) 3500 5000 2300 3500 2300 5050 5880 4300
3UP (일방) 3500 5000 2300 3500 2300 5050 5810 3917
3UP (관통) 3500 5000 2300 3500 2300 5050 6160 3917
10000 2UP (일방) 4000 6000 2300 4000 2300 5550 6670 4300
2UP (관통) 4000 6000 2300 4000 2300 5550 6880 4300
3UP (일방) 4000 6000 2300 4000 2300 5550 6810 3917
3UP (관통) 4000 6000 2300 4000 2300 5550 7160 3917
중량
Rated Load
(kg)		 기계실
Machine Room		 오버헤드/피트
Overhead / Pit		 모터 용량
(Kw)
X Y H 30 mpm
(single rail)		 45 mpm
(single rail)		 double 30mpm 45mpm
2000 3100 3370 2800 4800 / 1300 4800 / 1400 - 9.5 15
3100 3680 2800 4800 / 1300 4800 / 1400 - 9.5 15
3100 3510 2800 4400 / 1300 4400 / 1400 - 9.5 15
3100 3960 2800 4400 / 1300 4400 / 1400 - 9.5 15
2500 3500 3570 2800 4800 / 1300 4800 / 1400 - 11 19
3500 3880 2800 4800 / 1300 4800 / 1400 - 11 19
3500 3710 2800 4400 / 1300 4400 / 1400 - 11 19
3500 4160 2800 4400 / 1300 4400 / 1400 - 11 19
3000 3700 3970 2800 4800 / 1300 4800 / 1900 - 15 19
3700 4280 2800 4800 / 1300 4800 / 1900 - 15 19
3700 4110 2800 4400 / 1300 4400 / 1900 - 15 19
3700 4560 2800 4400 / 1300 4400 / 1900 - 15 19
3500 3900 4370 2800 4900 / 1400 4900 / 1900 - 15 19
3900 4680 2800 4900 / 1400 4900 / 1900 - 15 19
3900 4510 2800 4600 / 1400 4500 / 1900 - 15 19
3900 4960 2800 4600 / 1400 4500 / 1900 - 15 19
4000 4100 4570 2800 4900 / 1400 4900 / 1900 4900 / 1600 19 30
4100 4880 2800 4900 / 1400 4900 / 1900 4900 / 1600 19 30
4100 4710 2800 4700 / 1400 4600 / 1900 4600 / 1600 19 30
4100 5160 2800 4700 / 1400 4600 / 1900 4600 / 1600 19 30
5000 4300 5070 2800 5000 / 1500 5000 / 2000 5000 / 1600 22 37
4300 5380 2800 5000 / 1500 5000 / 2000 5000 / 1600 22 37
4300 5210 2800 4900 / 1500 4800 / 2000 4800 / 1600 22 37
4300 5660 2800 4900 / 1500 4800 / 2000 4800 / 1600 22 37
8000 5050 5670 3500 - - 5200 / 2000 37 55
5050 5880 3500 - - 5200 / 2000 37 55
5050 5810 3500 - - 5100 / 2000 37 55
5050 6160 3500 - - 5100 / 2000 37 55
10000 5550 6670 3500 - - 5600 / 2100 55 X
5550 6880 3500 - - 5600 / 2100 55 X
5550 6810 3500 - - 5600 / 2100 55 X
5550 7160 3500 - - 5600 / 2100 55 X
